product description

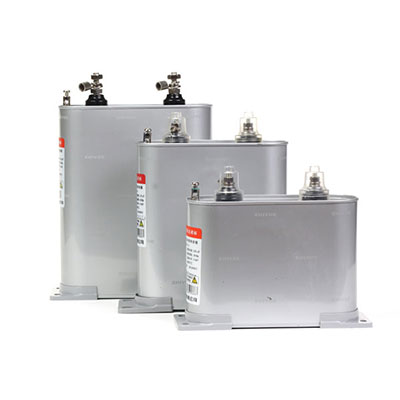

Box type BSMJ single phase Power Capacitor

Power Capacitor Supplier_single phase Power Capacitor

ZHIYUE brand of self-healing type low voltage capacitor made of the advanced metalized film, is produced strictly in accordance with the Nation Standard and IEC standard by the introduced advanced foreign techniques and equipment. The device is suitable for low voltage power network to improve power factor, reduce reactive loss and better the voltage quality.

Characteristics:

1.Small volume, light weight and convenient installation
2.No oil leakage, no-toxic and environment protection
3.Low loss, little radiation and low temperature rise
4.Excellent self-healing performance
5.Safety

Working condition:

1.Altitude: lower than 2000m
2.Ambient temperature: -25~50℃degree
3.Humidity: smaller than 85%
4.After the power cut off, reputing when make sure the remain voltage is smaller than 10% of the rated voltage, usually this time is 200s, so the controller you use should has the function of time delay for reputing after cut off.

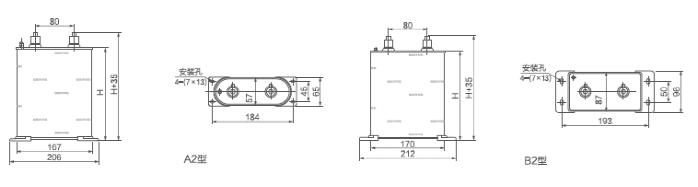

Power Capacitor Supplier_single phase Power Capacitor drawing

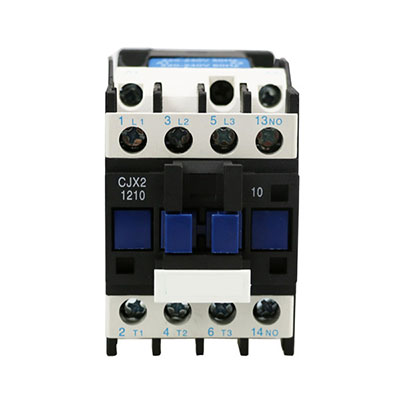

CJX2-0910 AC Contactor

Power Capacitor Supplier_CJX2-0910 AC Contactor

General Description:

AC CJX2-0910 contactor is suitable for electric circuit up to the rated voltage of 690V AC 50 Hz or 60Hz,rated current up to20A  for making, breaking, frequently starting & controlling AC motor. Combined with the auxiliary contact block, time delay & mechnical interlock device etc, it becomes the delay contactor, mechnical interlock contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC947-2,VDE0660&BS5452.

Technical Data:

it is suitable for frequency 50/60Hz,rated insulation voltage up to 1000V,rated opera tion current  9~300A under  AC3 duty.It  is mainly used for making/breaking electric circuits at a long distance & for frequent starting/stopping & controlling A.C.Motors.t is used in combination with thermal relay to compose a magnetic motor starter

Type   CJX2-09(LC1-09) CJX2-12(LC1-D12) CJX2-16(LC1-D18) CJX2-25(LC1-D25) CJX2-32(LC1-D32)
Rated working current(A) AC3 9 12 18 25 32
  AC4 3.5 5 7.7 8.5 12
AC3 capacity of phase 3 squirrel-cage motor AC3(kw) 220/230V 2.2 3 4 5.5 7.5
  380/400V 4 5.5 7.5 11 15
  415V 4 5.5 9 11 15
  440V 4 5.5 9 11 15
  500V 5.5 7.5 10 15 18.5
  600/690V 5.5 7.5 10 15 18.5
Rated heat current(A)   20 20 32 40 50
Electrical life AC4×104 20 20-15 43666 43661 43661
  AC3×106 2 2 2 2 2
Mechanical life×106
number of the contact 3P+NO
  3P+NC



Company Profile

ZHIYUE GROUP CO.LTD is a factory who mainly produce power capacitor, intelligent reactive compensation controller, vacuum circuit breaker , high and low voltage power transformer, high and low voltage reactive compensation device, harmonic solving device. It is a company which integrate research, produce, trade , service as a unit.

Establish in 1991,the factory building of the company covers an area of 6800 square meters, There are more than 100 workers now, 32 engineers, 10 senior engineers among them , more than 300 professional and technical personnel. The company is divided into five branch companies and ten selling branch office , and our selling agent is all over China, and our product is sold to many countries such as Southeast Asia, South America, Africa, Turkey, Russia, Bangladesh and so on, gain many trust from the customers.

We are group member of power capacitor professional committee of china Institute of Electrical Engineering Technology. We also participate in discussing and draw up the standard of country and industry.
