AAM High Voltage AC Filter Power Capacitor Application and Standards:

AC Filter Capacitors are mainly used in 50Hz and 60Hz AC power system, with other accessories (e.g. Reactors and resistors), can provide a low resistance path for one or multi harmonic current(s) and improve their power factors.

AAM AC filter Power Capacitor Technical Data:

1.Environment temperature: -40 ~ +45℃
2.Height: ≦1000m
3.For bandpass filter, the deviation of actual and the rated capacitance are less than ±5%.
4.For high-pass filter, the deviation of actual and the rated capacitance are less than ± 7.5%.
5.The capacity of capacitors are recommended to be symmetrical deviation. The actual deviation is to be confirm after discussion between customers and our company.
6.Loss tangent (tgθ) ≦0.0005

High Voltage AC Filter Power Capacitor Applicable Standards:

GB/T11024-2010 National standard 《Standard 1kV or above AC Power Systems Shunt Capacitor》

SEPERATE PHASE POWER CAPACITOR

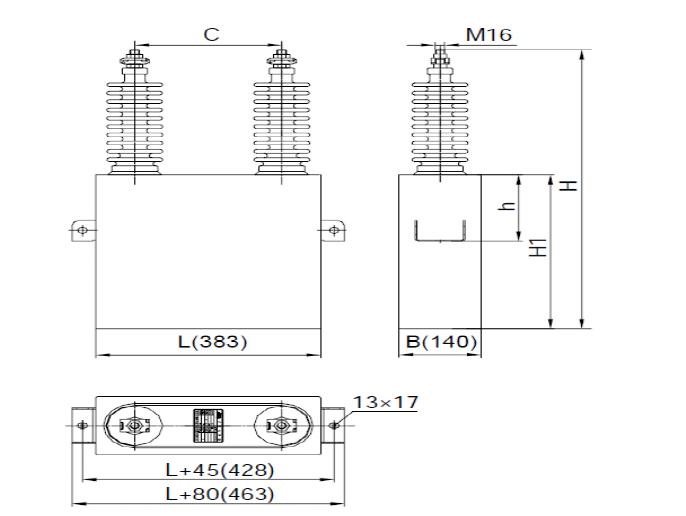

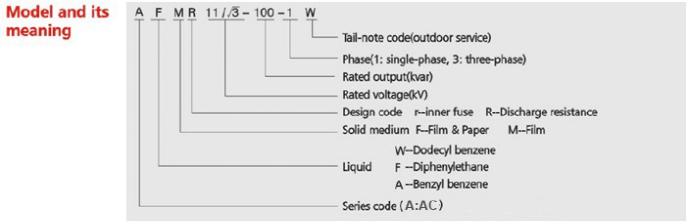

Model AAM	Rated Voltage (kV)	Rated Output (kVAr)	Rated Capacitance (uF)	Length L(mm)	Width B(mm)	Height H(mm)	Height H1(mm)	Height H(mm)	C (mm)	Stud	Weight (Kg)
1.2-100-1W	1.2	100	221	380	155	207	350	450	250	M16	32
4-100-1W	4	100	19.89	380	143	207	350	560	250	M12	30
4-150-1W	4	150	29.84	383	143	293	436	646	260	M12	44
4-250-1W	4	250	49.74	383	180	396	556	766	260	M16	70
4.2-100-1W	4.2	100	18.04	380	143	207	350	560	250	M12	30
4.4-100-1W	4.4	100	16.44	380	143	207	350	560	250	M12	30
4.4-244-1W	4.4	244	40.12	383	180	361	521	736	260	M16	67
4.4-405-1W	4.4	405	66.59	383	180	426	606	816	350	M16	100
4.5-140-1W	4.5	140	22.01	383	143	262	396	606	260	M16	39
4.5-182-1W	4.5	182	28.61	383	180	362	496	706	260	M16	48
4.5-200-1W	4.5	200	31.44	383	180	298	441	651	260	M16	54
4.5-210-1W	4.5	210	33.01	383	180	301	461	671	260	M16	56
4.5-280-1W	4.5	280	44.01	383	180	431	591	801	260	M16	72
4.7-250-1W	4.7	250	36.02	383	180	341	501	711	260	M16	63
5-100-1W	5	100	12.73	380	143	207	350	560	250	M12	30
6.3-225-1W	6.3	225	18.04	383	180	322	456	746	260	M16	57
6.3-250-1W	6.3	250	20.05	383	180	336	496	786	260	M16	63
6.4-200-1W	6.4	200	15.54	383	180	297	431	721	260	M16	54
6.4-300-1W	6.4	300	23.31	383	180	443	586	876	260	M16	73
6.5-80-1W	6.5	80	6.03	380	115	207	350	560	250	M12	25
6.5-140-1W	6.5	140	10.55	383	143	257	391	641	260	M12	40
6.5-200-1W	6.5	200	15.07	383	180	287	421	711	260	M16	53
6.6-150-1W	6.6	150	10.96	383	143	272	406	656	260	M12	41
6.6-300-1W	6.6	300	21.92	383	180	443	586	876	260	M16	73
6.8-300-1W	6.8	300	20.65	383	180	466	626	916	260	M16	77
6.8-310-1W	6.8	310	21.34	383	180	481	641	931	260	M16	79
6.8-334-1W	6.8	334	22.99	383	180	531	691	981	260	M16	84
6.9-100-1W	6.9	100	6.69	383	143	207	350	600	250	M12	31
6.9-117-1W	6.9	117	7.82	380	165	207	350	600	250	M12	34
6.9-150-1W	6.9	150	10.03	383	143	272	406	656	260	M12	41
6.9-300-1W	6.9	300	20.06	383	180	458	601	891	260	M16	74
7-33.3-1W	7	33.3	2.16	320	110	115	235	445	220	M12	14
7-50-1W	7	50	3.25	320	110	180	300	510	220	M12	19
7-100-1W	7	100	6.5	380	143	207	350	600	250	M12	31
7-125-1W	7	125	8.12	380	165	207	350	600	250	M12	34
7-150-1W	7	150	9.74	383	143	262	396	646	260	M12	40
7-166.7-1W	7	166.7	10.83	383	143	297	431	681	260	M12	44
7-200-1W	7	200	12.99	383	180	277	411	701	260	M16	52
7-250-1W	7	250	16.24	383	180	376	536	826	260	M16	68
7-300-1W	7	300	19.49	383	180	466	626	916	260	M16	77
7-334-1W	7	334	21.7	383	180	531	691	981	260	M16	84
7.2-50-1W	7.2	50	3.07	320	110	190	310	520	220	M12	19
7.2-60-1W	7.2	60	3.68	320	110	230	350	560	220	M12	23
7.2-100-1W	7.2	100	6.14	380	143	207	350	600	250	M12	31
7.2-125-1W	7.2	125	7.68	380	165	207	350	600	250	M12	34
7.2-150-1W	7.2	150	9.21	383	143	282	416	666	260	M12	42
7.2-166.7-1W	7.2	166.7	10.24	383	143	312	446	696	260	M12	45
7.2-175-1W	7.2	175	10.75	383	180	252	386	676	260	M16	49
7.2-200-1W	7.2	200	12.28	383	180	297	431	721	260	M16	54
7.2-233.3-1W	7.2	233.3	14.33	383	180	331	491	781	260	M16	63
7.2-250-1W	7.2	250	15.35	383	180	361	521	811	260	M16	67
7.2-300-1W	7.2	300	18.42	383	180	466	626	916	260	M16	77
7.2-310-1W	7.2	310	19.03	383	180	481	641	931	260	M16	79
7.2-334-1W	7.2	334	20.51	383	180	511	671	961	260	M16	82
7.2-334-1W	7.2	334	20.51	383	180	531	691	981	260	M16	84
7.3-200-1W	7.3	200	11.95	383	180	282	416	706	260	M16	53
7.4-200-1W	7.4	200	11.63	383	180	277	411	701	260	M16	52
7.4-350-1W	7.4	350	20.34	383	180	511	671	961	260	M16	82
7.5-100-1W	7.5	100	5.66	380	143	207	350	600	250	M12	31
7.5-125-1W	7.5	125	7.07	380	165	207	350	600	250	M12	34
7.5-150-1W	7.5	150	8.49	383	143	292	426	676	260	M12	43
7.5-200-1W	7.5	200	11.32	383	180	302	436	726	260	M16	54
7.5-250-1W	7.5	250	14.15	383	180	371	531	821	260	M16	67
7.5-300-1W	7.5	300	16.98	383	180	452	626	916	260	M16	77
