What are DC filter capacitors?

Maintaining a clean, stable DC power supply is critical in modern electrical and electronic systems. Voltage fluctuations, ripple noise, and electromagnetic interference (EMI) can interfere with sensitive equipment, reduce efficiency, and even cause failures. This is where a DC filter capacitor comes in handy – a component specifically designed to smooth out fluctuations in the DC power supply, ensuring reliable performance.

What are DC filter capacitors?

A DC filter capacitor is an electronic component that smooths out AC ripple noise in the DC power supply. It stores electrical energy and releases it when needed to stabilize the voltage, acting like a “buffer” to smooth out fluctuations.

How does it work?


1. Charging Phase  – When there is a spike in input power, the capacitor absorbs the excess voltage.

2. Discharging Phase – When the voltage drops, the capacitor releases the stored energy to compensate for the voltage sag.

3. Noise filtering – Shunts high-frequency AC ripple to ground, resulting in a clean DC output.


This process ensures that sensitive electronic devices receive a stable voltage, preventing failures.

Key features of high-performance DC filter capacitors

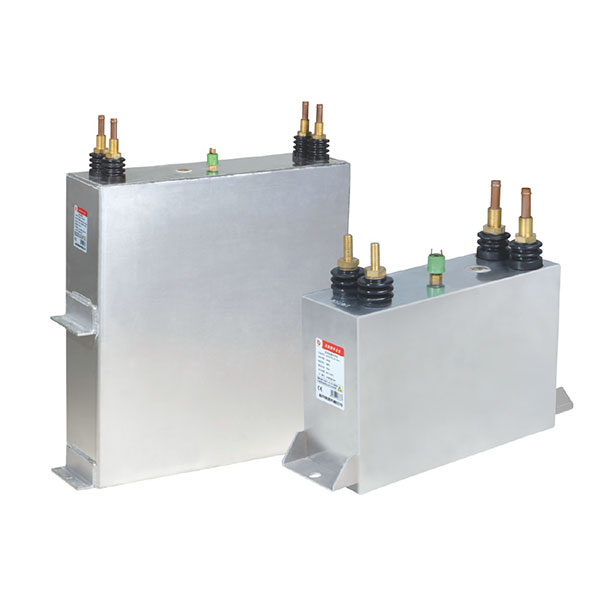

Not all capacitors are created equal. Industrial-grade high-voltage DC filter capacitors, such as ours, are designed for extreme conditions:

Where are DC filter capacitors used?


DC filter capacitors are critical in the following areas due to their ability to stabilize power:

1. Renewable energy systems

Solar/wind inverters – reduce ripple noise and improve energy conversion efficiency.

Battery energy storage systems – protect batteries from voltage spikes and extend life.

2. Industrial and automotive applications

Electric vehicles (EVs) – ensure stable power to motor drives and charging systems.

Railway traction systems – handle high voltage fluctuations from locomotives.

Industrial lasers and CNC machines – prevent power instabilities that can damage precision tools.

3. High-power electronics

Uninterruptible power supplies (UPS) – maintain clean power during power outages.

Medical imaging equipment – ​​reduce electrical noise to ensure accurate diagnoses.


Why is it so important to choose the right DC filter capacitor?


Improperly selected capacitors may lead to:

Premature failure (overheating, expansion or explosion)
Increased maintenance costs (frequent replacement)
Inefficient system (increased energy loss)

Our industrial-grade capacitors solve these problems by:

Longer service life (thanks to advanced cooling technology and durable materials)
Higher safety (pressure protection + compliance with EC61071 standard)
Wider operating range (can work in extreme temperatures and altitudes)

Why choose Zhiyue

Zhiyue  is a manufacturer specializing in the manufacture of high and low voltage power equipment.The company adheres to the concept of "providing the most perfect solution for grid compensation" and mainly produces power capacitors, intelligent reactive compensation controllers, vacuum circuit breakers, high and low voltage power transformers, reactive compensation devices and harmonic control devices. The company has more than 300 professional technicians, and all products have passed ISO9000 international quality system certification. With continuous technological innovation and high-quality products, our equipment has been exported to Southeast Asia, South America, Africa, Turkey, Russia, Bangladesh and other countries and regions, and has won wide trust from customers around the world

Conclusion:

DC filter capacitors may not be the most eye-catching components, but they play a key role in ensuring smooth, efficient and safe power transmission. Whether in the field of renewable energy, electric vehicles or industrial automation, the right capacitor may determine whether the system is a high-performance system or a fault-prone system.
