DZMJ DC Filter Capacitor

Name: DZMJ DC Filter Capacitor
Brand: Zhiyue
SKU: 00150
Rating: 4.1 (125 reviews)

Notes

The role of DZMJ DC filter capacitors is to provide filtering and voltage support on the direct current (DC) side of the power supply.

。Large capacity: 300~5000μF
。High current: Maximum current reaches 2500A
。High voltage: 800~1800VDC
。Cooling method: Full water cooling or semi-water cooling
。 Non-toxic impregnating agent
。 Equipped with pressure protection relay

PDF Download Request a Quote 0086-577-62786608

Detailed introduction

High Voltage DC Filter Capacitor Application

The role of DZMJ DC filter capacitors is to provide filtering and voltage support on the direct current (DC) side of the power supply. They are widely used in applications such as medium and low-frequency induction heating, variable frequency speed control, and other AC/DC/AC power sources.

High Voltage DC Filter Capacitor Features

1. Large capacity: 300~5000μF

2. High current: Maximum current reaches 2500A

3. High voltage: 800~1800VDC

4. Cooling method: Full water cooling or semi-water cooling

5. Non-toxic impregnating agent

6. Equipped with pressure protection relay

High Voltage DC Filter Capacitor Working conditions

1. Altitude: ≤ 2000m

2.Environmental Humidity: ≤ 85%

3.Temperature Range: 5~45°C

4.Capacitance Deviation: ±10%

5.Protection Level: P00 Indoor Installation

6.Cooling Water Requirements: Flow ≥ 6L/min, Outlet Water Temperature < 45°C

7.Compliance with Standards: EC61071

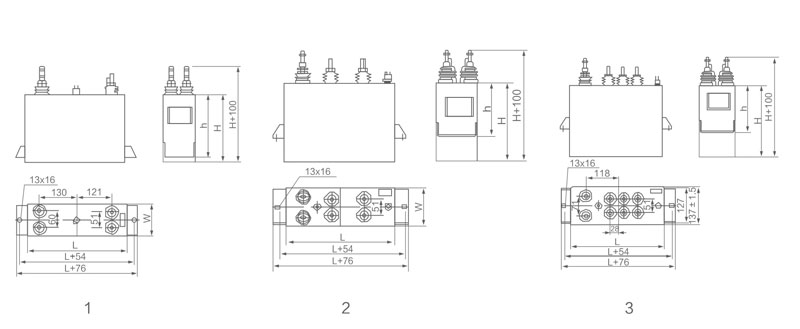

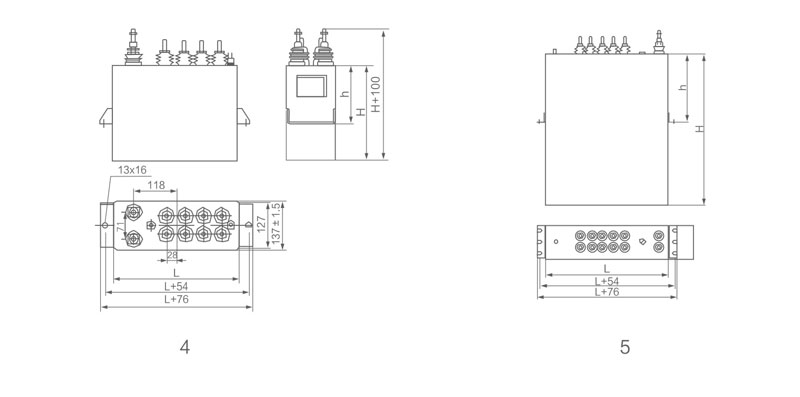

SPECIFICATION	L(mm)	W(mm)	H(mm)	h(mm)	VOLTAGE (VDC)	CAPACITY(μF)	CURRENT(A)	Weight(kg)	Figure
DZMJ0.9-2x150	343	114	229	216	900	300	700	14	1
DZMJ0.9-2x200	343	76	229	229	900	400	400	11	1
DZMJ0.9-4x150	559	133	387	226	900	600	750	25	2
DZMJ0.9-4x194	343	124	419	216	900	780	1200	26	2
DZMJ0.9-6x141	343	104	419	229	900	850	1400	23	3
DZMJ0.9-6x200	343	159	559	229	900	1200	1800	42	3
DZMJ0.9-6x233	343	124	286	286	900	1400	800	19	3
DZMJ0.9-1500	559	95	451	251	900	1500	2000	35	3
DZMJ0.9-4x140	343	124	476	229	900	1640	1140	29	2
DZMJ0.9-4x463	343	146	476	229	900	1850	1200	34	2
DZMJ0.9-6x517	343	124	695	178	900	3100	1800	42	3
DZMJ0.9-8x412	419	124	673	289	900	3300	2600	49	4
DZMJ0.9-10x500	559	133	590	317	900	5000	2500	61	5
DZMJ0.9-10x500	559	159	700	317	1800	5000	2500	86	5
