Application and Standards:

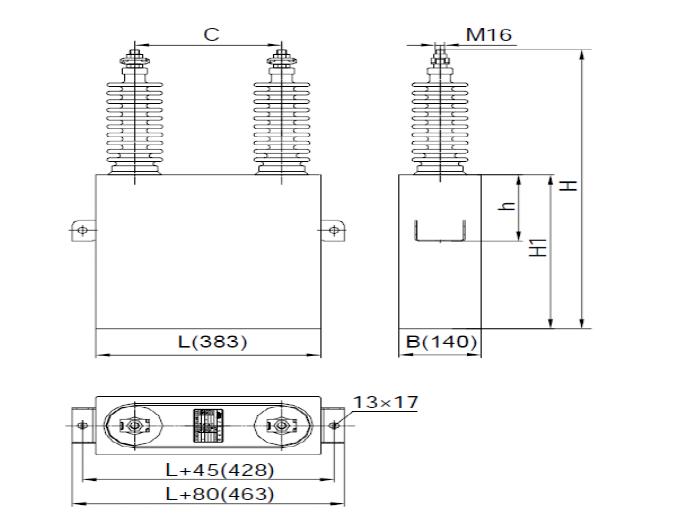

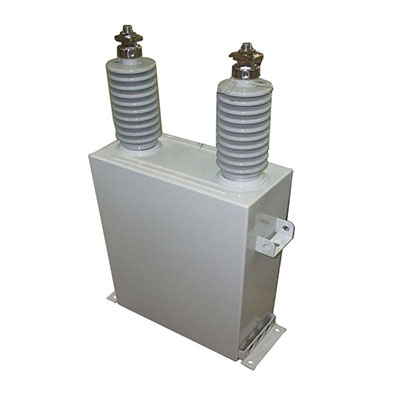

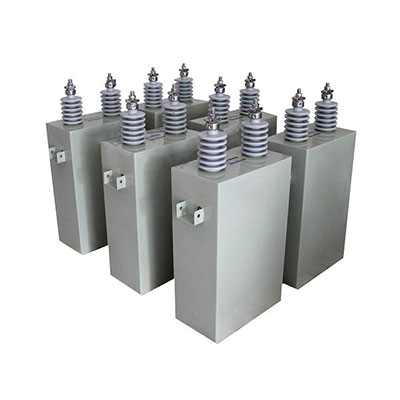

High voltage capacitor is mainly used in the A. C. Power system with 50Hz to improve power factor. The performance sonforms to GB 3083.2-89 《High voltage shunt capacitor》and IEC60871-1987.
1.Altitude: less than 1000m; Ambient Temperature: -40℃ ~ +40℃。
2.No violent mechanical vibration, no harmful gas and vapor, no electric, and explosive, and explosive dust in location.
3.Continuous operation voltage: 1.00 Un, long-term max, Over voltage: less.1 Un.
4.Stable over-curent (including harmonics current) less 1.3 In.
5.With stand voltage: between terminal 2.15, time rated voltage for 10 seconds, between terminals and container 42kV for 10 seconds.
Main technical characteristics:
1.Rated voltage: 6.3kV, 6.6kV, 6.6/√3kV, 7.96kV, 10.5kV, 11kV, 11kV, 11/√3kV, please indicated in the order if you want the other special capacity.
2.Rated capacity: 33~334kvar please indicated in the order if you want the other special capacity.
3.Capacity tolerance: -5 ~ 15%.
4.Loss angel tangential value: film & papaer medium tg θ≦0.08%,film medium tg θ≦0.05%.
5.Withstand voltage: it can afford AC2.15 or DC4.3 times rated voltage between the capacity pales, last about 10s without break or flash, BIL: 6kV(30kV), 10kV(42Kv).
6.Free discharge: it has the inner resistance,10min after cutting off the power supply, the residual voltage will reduce to 75V from √2 Un.
7.Max. Current: running smoothly under the 1.3 time rated voltage, over voltage, capacity positive tolerance and harmonic wave which can not exceed 1 min each 24 hours.
8.Max.Current: running smoothly under the 1.3 time rated voltage, over voltage, capacity positive tolerance and harmonic wave which can not 1.43 time rated current.
9.Standard: GB/T 112024.1-2001, IEC6087:1997.
Application and Standards:
AC Filter Capacitors are mainly used in 50Hz and 60Hz AC power system, with other accessories (e.g. Reactors and resistors), can provide a low resistance path for one or multi harmonic current(s) and improve their power factors.
1.Environment temperature: -40 ~ +45℃
3.For bandpass filter, the deviation of actual and the rated capacitance are less than ±5%.
4.For high-pass filter, the deviation of actual and the rated capacitance are less than ± 7.5%.
5.The capacity of capacitors are recommended to be symmetrical deviation. The actual deviation is to be confirm after discussion between customers and our company.
6.Loss tangent (tgθ) ≦0.0005
GB/T11024-2010 National standard 《Standard 1kV or above AC Power Systems Shunt Capacitor》
