Vacuum Contactor Supplier

DateTime :    Visit : 484

product description

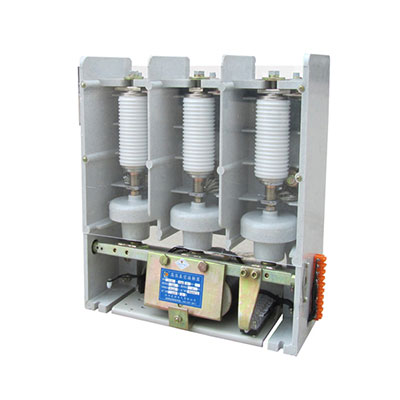

Vacuum Contactor Supplier_JCZ5-7.2KV Vacuum Contactor

                      JCZ5-7.2KV Vacuum Contactor

General Description:

VCZ5-7.2,12/400,630 series vacuum contactor is used in an AC. 50-60 Hz electric power system, with rated working voltage is 7.2Kv and 12kV, and rated current of 400A,630A, for direct or romote on-off control and circuit-breaking control of the of the main load. It is especially suitable for the frequently operated electric control applications such as electric motors, transformer, etc. This series adopts integrated framework, before-and-after layout between the main circuit and controlling circuit, adopts electrical latch or machanical latch, and vacuum interrupter with ceramic shell.

Main Specifications:

1. High-voltage AC vaccum contactor
2. Designed code
3. Rated voltage(kV)
4. Latching mode:J—machanical latch; D—electrical latch
5. G—high altitude; Y—movable type; None—basic type
6. Rated current(A)
7. Rated short-time withstand current(kA)
8. Vaccum shell materials: T—ceramic

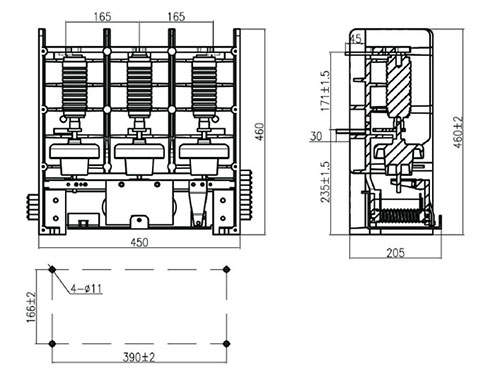

Vacuum Contactor Supplier_JCZ5-7.2KV Vacuum Contactor drawing

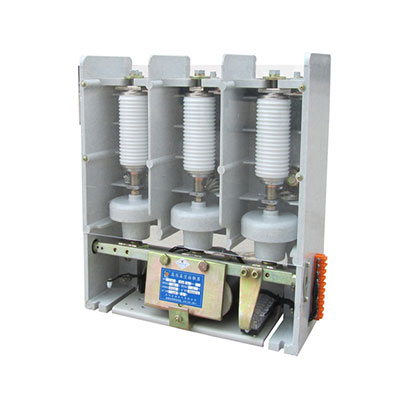

Vacuum Contactor Supplier_JCZ5-12KV Vacuum Contactor

                      JCZ5-12KV Vacuum Contactor

General Description:

VCZ5-7.2,12/400,630 series vacuumcontactor is used in an AC. 50-60 Hz electric power system, with rated working voltage is 7.2Kv and 12kV, and rated current of 400A,630A, for direct or romote on-off control and circuit-breaking control of the of the main load. It is especially suitable for the frequently operated electric control applications such as electric motors, transformer, etc. This series adopts integrated framework, before-and-after layout between the main circuit and controlling circuit, adopts electrical latch or machanical latch, and vacuum interrupter with ceramic shell.

Main Specifications:

1. High-voltage AC vaccum contactor
2. Designed code
3. Rated voltage(kV)
4. Latching mode:J—machanical latch; D—electrical latch
5. G—high altitude; Y—movable type; None—basic type
6. Rated current(A)
7. Rated short-time withstand current(kA)
8. Vaccum shell materials: T—ceramic

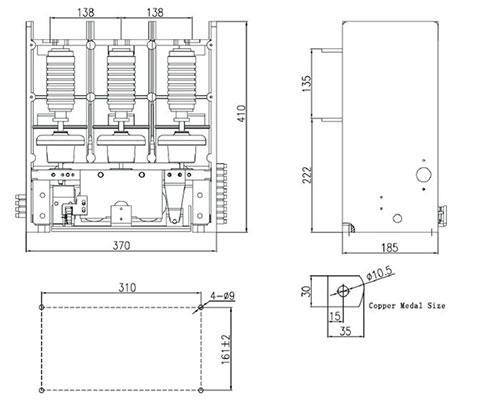

Vacuum Contactor Supplier_JCZ5-12KV Vacuum Contactor drawing



Company Profile

ZHIYUE GROUP CO.LTD is a factory who mainly produce power capacitor, intelligent reactive compensation controller, vacuum circuit breaker , high and low voltage power transformer, high and low voltage reactive compensation device, harmonic solving device. It is a company which integrate research, produce, trade , service as a unit.

Establish in 1991,the factory building of the company covers an area of 6800 square meters, There are more than 100 workers now, 32 engineers, 10 senior engineers among them , more than 300 professional and technical personnel. The company is divided into five branch companies and ten selling branch office , and our selling agent is all over China, and our product is sold to many countries such as Southeast Asia, South America, Africa, Turkey, Russia, Bangladesh and so on, gain many trust from the customers.

The company has been persisting in taking “offer the most perfect solution for power network compensation”.  As the theory, constantly uses new technologies to put out the new products, wines the approval and trust from the masses of users. The company has past ISO9000 international quality system authentication and obtainer the achievement gold service, the provincial medium and small-scale sincere enterprise , city star enterprise and outstanding credit enterprise, and it has been appraised as  “AAA”  Class credit standing for 9 years in succession. “ZHIYUE” Trade mark has been chosen as the famous –brand trademark at first among capacitor trade in 2003 and we also past the CE certificate from the Europe , and TSE from Turkey.

We are group member of power capacitor professional committee of china Institute of Electrical Engineering Technology. We also participate in discussing and draw up the standard of country and industry.
