SC(B)11 High Voltage Transformer

Notes

6. Phase No.: Single phase or three phase
7. Vector Group: Yyn0 or Dyn11
8. Impedance voltage: 4~8%
9. Service condition: 100% relative humidity, ambient temperature not more than 40oC or according to customers' requirements
10. Type of cooling: AN or AF

Detailed introduction

SC(B)11 High Voltage Transformer

SC(B)11 Dry Type High Voltage Transformer

General Description:
Dry type resin insulated SC(B)11, SC(B)10, SC(B)9 distribution transformers are widely used for power supply & distribution in industrial and civil occasions, to step down grid voltage (6-35KV) to line voltage 400V. The transformers are resin insulated, which is safe, non-pollute, flame proof and can be installed directly on the load centre, with the merits of free maintenance, easy installation, low operation cost, low loss and excellent humidity resistance.
Main application in: High-rise buildings, airports, terminals, power plants, transformer stations, residential areas or packages of various sites.
Product standard:  IEC60076 & GB/T10228, GB109411, GB4208, GB6450

Main Specifications:
1. Voltage class: 6-35KV
2. Model of voltage regulation: Off-excitation or on-load tap changer
3. Tapping range: 5%, 2x2.5%,
4. Power Capacity: 10-4000kVA
5. Frequency: 50Hz or 60HZ
6. Phase No.: Single phase or three phase
7. Vector Group: Yyn0 or Dyn11
8. Impedance voltage: 4~8%
9. Service condition: 100% relative humidity, ambient temperature not more than 40oC or according to customers' requirements
10. Type of cooling: AN or AF
11. Protection class: IP00, IP20, IP23
12. Insulation level: F/F

Ambient conditions:
Altitude: ≤1, 000m
Highest ambient temperature: +40℃
Highest annual average temperature: +20℃
Highest monthly average temperature: +30℃
Lowest temperature: -25℃

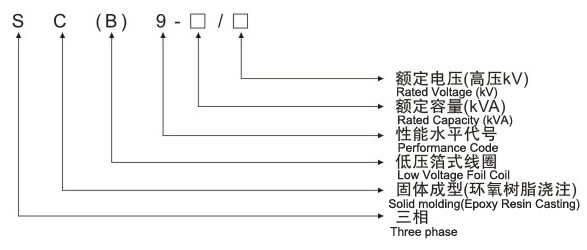

Model meaning


Technical Data:
SC(B)9 Dry-type Cast Resin Distribution Transformer

Model Voltage Group (kV) Connection Method Insulating Impedance no-load
loss
Loaded
loss (120℃)
No-load
current
Dimension Track
guage
Weight
without shell (cm) with shell (cm)  without
shell
with
shell

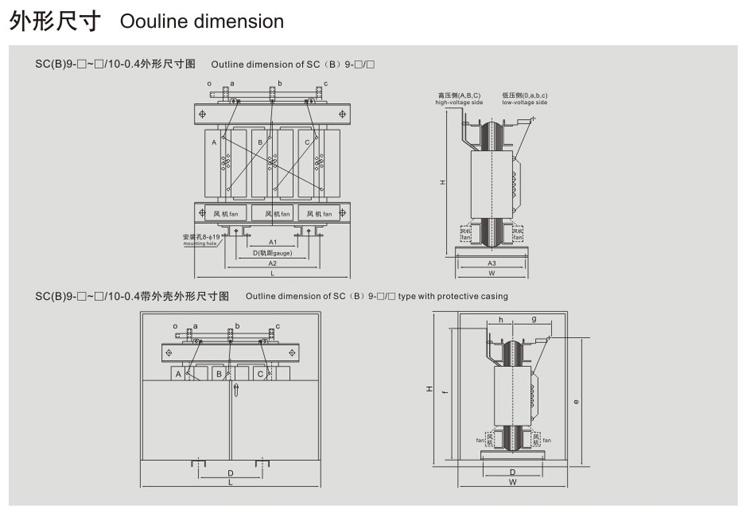

% Watt Watt % L*W*H D*A1*A2*A3 L*W*H D*e*f*g*h kg kg
SC9-
10/10
High
voltage
11
10.5
10
6.3
6
Low
voltage
0.4
Dyn11
or
Yyn0
F/F 4 121 290 3.8 60*45*49 40*40*40*40 90*80*85 40*47*49*24*18 550 130 250
SC9-
20/10
4 153 565 3.3 60*45*56 40*40*40*40 90*80*85 40*54*56*24*18 550 170 305
SC9-
30/10
4 176 670 2.5 62*45*65 40*40*40*40 105*90*100 40*62*65*22*18 550 360 480
SC9-
50/10
4 243 896 2 62*45*75 40*40*40*40 105*900*105 40*70*75*22*18 550 420 540
SC9-
63/10
4 314 115 2 75*50*76 40*40*40*45 105*10*115 40*71*76*24*19 550 530 650
SC9-
80/10
4 333 132 2 75*50*76 40*40*40*45 110*100*115 40*71*76*25*20 550 640 760
SC9-
100/10
4 360 150 1.9 75*50*89 40*40*40*45 115*110*125 40*80*89*25*20 550 785 905
SC9-
125/10
4 423 176 1.7 106*60*102 55*55*55*55 135*105*120 55*97*102*32*26 550 860 1160
SC9-
160/10
4 491 203 1.7 106*60*106 55*55*55*55 140*105*125 55*102*106*32*26 550 930 1230
SC9-
200/10
4 563 241 1.5 106*71*112 66*66*66*66 145*110*135 66*106*112*32*27 550 1150 1460
SC9-
250/10
4 648 263 1.5 110*71*114 66*66*66*66 150*115*140 66*111*114*32*28 550 1290 1600
SC9-
315/10
4 792 330 1.3 115*71*120 66*66*66*66 150*120*145 66*115*120*33*28 660 1440 1750
SC9-
400/10
4 878 380 1.3 126*87*129 66*66*66*82 160*125*160 66*120*129*36*32 660 1680 2040
SC9-
500/10
4 105 464 1.3 129*87*136 82*82*82*82 160*130*165 82*129*136*37*33 660 1840 2200
SC9-
630/10
6 122 558 1.1 145*87*142 82*82*82*82 180*130*170 82*135*142*36*32 820 2280 2660
SC9-
630/10
6 112 567 1.1 150*87*137 82*82*82*82 185*130*165 82*130*137*35*31 820 2485 2860
SC9-
800/10
6 145 661 1.1 155*87*157 82*82*82*82 190*130*180 82*148*157*38*33 820 2620 3020
SC(B)9-
1000/10
6 160 773 1 160*87*167 82*82*82*82 195*130*195 82*152*167*37*33 820 3150 3550
SC(B)9-
1250/10
6 189 921 1 168*112*177 107*107*107*107 205*135*200 107*160*177*39*34 1070 3740 4150
SC(B)9-
1600/10
6 221 112 1 175*112*186 107*107*107*107 210*140*210 107*169*186*41*37 1070 4320 4750
SC(B)9-
2000/10
6 299 138 0.9 177*112*187 107*107*107*107 215*150*210 107*170*187*43*41 1070 5450 5900
SC(B)9-
2500/10
6 360 164 0.8 187*112*195 107*107*107*107 220*150*220 107*172*195*44*42 1070 6310 6760
SC(B)9-
3150/10
8 463 214 0.7 195*112*190 107*107*107*107 235*160*225 107*175*198*46*44 1070 7260 7650
SC(B)9-
4000/10
8 537 257 0.7 210*112*205 107*107*107*107 240*160*230 107*185*205*47*45 1070 7985 8230
